When Ultra Fractal calculates a fractal, it does not immediately calculate a color for each pixel. Instead, it calculates an intermediate index value. The index value is a single floating-point number that is returned by the selected coloring algorithm.
The gradient translates index values to colors. Since only the index values are stored, the colors can be changed without having to recalculate the fractal. To put it another way, the coloring algorithm defines the distribution of the colors, the gradient defines the colors themselves.

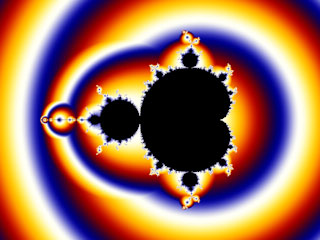

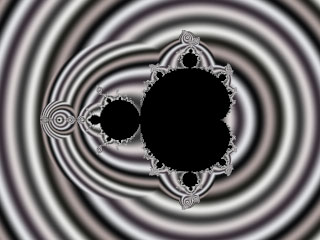

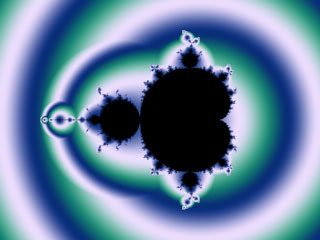

Here is an example. This is the same fractal with three different gradients, shown below each fractal.
|
|
|
|
|
|
The fractal contains only colors from the gradient. In addition, you can also recognize the color transitions from the gradient in the fractal. This is because most coloring algorithms, such as the one used here, create smooth ranges of index values. Note how the gradient wraps around at the endpoints to create smoothly colored images.
Note that with direct coloring algorithms, the coloring algorithm directly calculates the color of a pixel, and the gradient is used differently. A direct coloring algorithm can use colors from the gradient, but it is not limited to the gradient alone.
